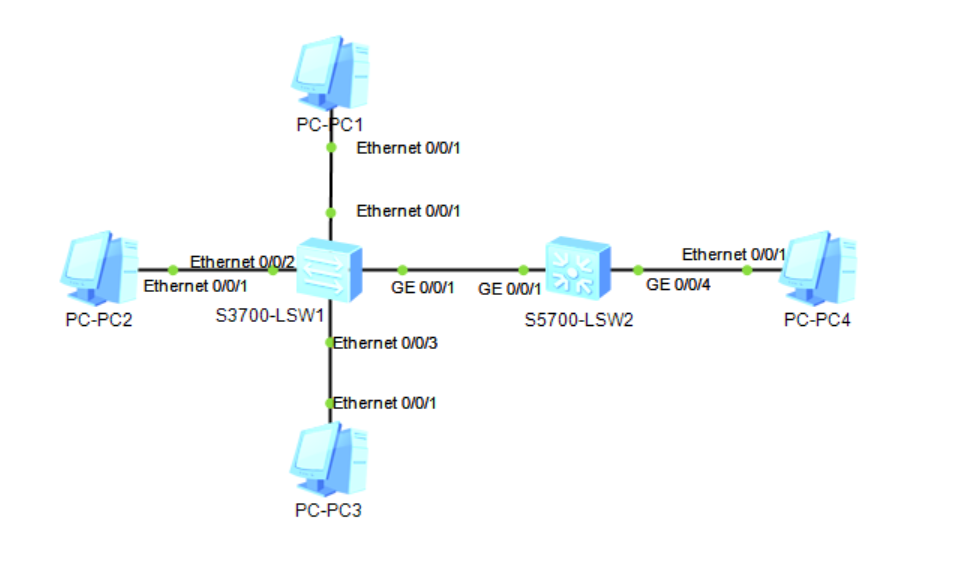

【任务说明】

在LSW2上做基于MAC地址的VLAN划分，将PC1、PC2划分到VLAN10中，并通过基于端口的VLAN划分方式将PC4划分到VLAN20中，在LSW2上为VLAN10、VLAN20设置虚拟接口地址，分别为192.168.1.254/24、192.168.2.254/24。LSW1上不作配置。



机器	IP地址	网关	MAC地址
PC-PC1	192.168.1.1/24	192.168.1.254	54-89-98-11-11-11
PC-PC2	192.168.1.2/24	192.168.1.254	54-89-98-22-22-22
PC-PC3	192.168.1.3/24	192.168.1.254	54-89-98-33-33-33
PC-PC4	192.168.2.4/24	192.168.2.254	54-89-98-44-44-44

【命令脚本】

<Huawei>system-view

Enter system view, return user view with Ctrl+Z.

[Huawei]undo info-center enable

Info: Information center is disabled.

[Huawei]vlan batch 10 20

Info: This operation may take a few seconds. Please wait for amoment...done.

[Huawei]

[Huawei]int vlanif 10

[Huawei-Vlanif10]ip address 192.168.1.254 24

[Huawei-Vlanif10]quit

[Huawei]int vlanif 20

[Huawei-Vlanif20]ip address 192.168.2.254 24

[Huawei-Vlanif20]quit

[Huawei]vlan 10

[Huawei-vlan10]mac-vlan mac-address 5489-9811-1111

[Huawei-vlan10]mac-vlan mac-address 5489-9822-2222

[Huawei-vlan10]quit

[Huawei]int g0/0/1

[Huawei-GigabitEthernet0/0/1]port link-type hybrid

[Huawei-GigabitEthernet0/0/1]port hybrid untagged vlan 10

[Huawei-GigabitEthernet0/0/1]mac-vlan enable

Info: This operation may take a few seconds. Please wait for amoment...done.

[Huawei-GigabitEthernet0/0/1]quit

[Huawei]int g0/0/4

[Huawei-GigabitEthernet0/0/4]port link-type access

[Huawei-GigabitEthernet0/0/4]port default vlan 20

[Huawei-GigabitEthernet0/0/4]quit

[Huawei]
